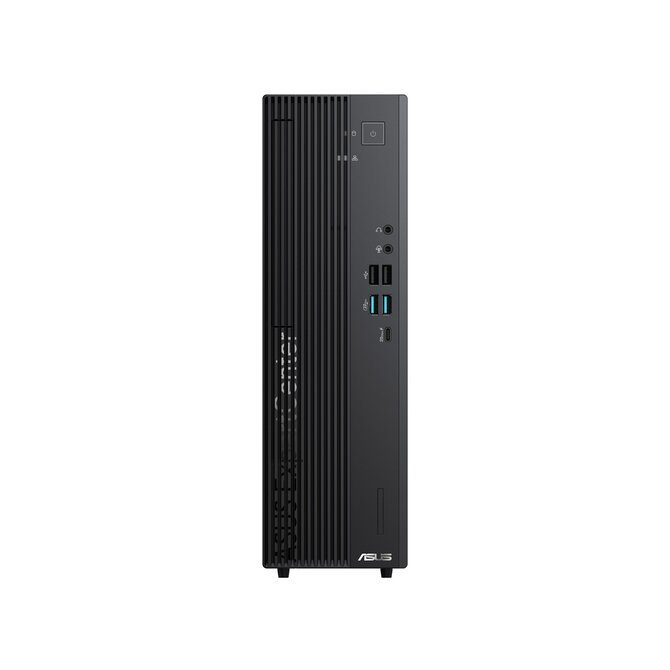

ASUS ExpertCenter D7 SFF - i7-14700/16GB/512GB SSD/DVD writer 8X/180D/DVD writer 8X/330W/3yr Pick up & Return/Win 11 Pro

Size
8.6L

Color
Black

Form Factor
Small form factor

Operating System
Windows 11 Pro - ASUS recommends Windows 11 Pro for business

Office
1-month trial for new Microsoft 365 customers. Credit card required.

Processor
Intel® Core™ i7-14700 Processor 2.1GHz (33MB Cache, up to 5.3GHz, 20 cores, 28 Threads)
N/A

Chipset
Intel® B760 Chipset

DIMM Memory
16GB DDR5 U-DIMM

Memory Speed
Memory speed is 5600MHz, but run at 4000~4400MHz.

Memory Max.
128GB

Integrated GPU
Intel® UHD Graphics 770

Storage
512GB M.2 2280 NVMe™ PCIe® 4.0 SSD

Optical Drive
DVD writer 8X

LAN
Intel WGI219V 10/100/1000 Mbps, non-vPro

Audio
High Definition 7.1 Channel Audio

Wireless
Wi-Fi 6E(802.11ax) (Dual band) 2*2 + Bluetooth® 5.4 Wireless Card

Power Supply
330W power supply (80+ Platinum, peak 660W)

Rear I/O Port
1x RJ45 Gigabit Ethernet
1x HDMI 1.4
1x VGA Port
1x Displayport 1.4
1x 7.1 channel audio (microphone, line-out, Line-in)
1x Kensington lock
1x Padlock loop
3x USB 2.0 Type-A
2x USB 3.2 Gen 1 Type-A
1x FLEX I/O port (DP1.4 HBR3)

Front I/O Port
1x Headphone
1x 3.5 mm combo audio jack (Mic in or Headphone out)
2x USB 2.0 Type-A
2x USB 3.2 Gen 2 Type-A
1x USB 3.2 Gen 2*2 Type-C

Drive Bay
2.5"" x 1
3.5"" x 1

Serial ATA
4 x SATA 6.0Gb/s ports

Expansion Slot(includes used)
1x PCIe® 4.0 x 16
2x PCIe® 3.0 x 1
1x M.2 2230 connector for storage
1x M.2 2280 connector for storage
1x M.2 connector for WiFi
4x DDR5 U-DIMM slot

Keyboard & Mouse
Wired keyboard (USB)
Wired optical mouse (USB)

Accessory
Internal Speaker
1 x COM port
Intrusion cable (Intrusion Switch)
2.5"" HDD assembly kit

Dimension (WxDxH)
09.30 x 29.60 x 30.90 cm (3.66" x 11.65" x 12.17")

Weight
06.00 kg (13.23 lbs)

My ASUS features
System diagnosis
Fan profile
AppDeals

Built-in Apps
MyASUS
ASUS Business Manager

Adobe Creative Cloud Hard Bundle
One-Month Membership of Adobe Creative Cloud All Apps

Security
HDD User Password Protection and Security
Kensington Security Slot™(7x 3mm)
McAfee® 30 days free trial
Padlock loop
Trusted Platform Module (Firmware TPM)

Antivirus
McAfee® 30 days free trial

TPM
Trusted Platform Module (TPM) 2.0

Ecolabels & Compliances
EPEAT Gold
Energy star 8.0
REACH
RoHS

Base Warranty
3Y Pick up/ return

Recommended Warranty Package Part number//Extension and/or upgrade service from base warran
ACX11-00491HPF//2Y Extension
ACX13-007003PF//3Y OnSite Service(Next Business Day)*upgrade
ACX13-007023PF//2Y Extension; 5Y OnSite Service(Next Business Day)
