Popis produktu
Firemní projektor pro prezentace s rozlišením 1080P | MH560
- Vysoký jas 3800 ANSI lumenů a vysoký kontrastní poměr 20 000 : 1
- Exkluzivní režim zobrazení dat zlepšující čitelnost textů, tabulek a grafů
- Režim SmartEco snižující výkon lampy až o 70 %
BenQ DLP Projektor MH560 /1920x1080/3800 ANSI/1.49÷1.64:1/20k:1/2xHDMI/VGA/S-Video/Composite/USB/10W repro
All Specifications
Display
Projection System DLP Single
DMD type 0.65" 1080P
Resolution 1920 x 1080 pixels
Resolution Support VGA(640 x 480) to WUXGA_RB(1920 x 1200)
Brightness (ANSI lumens) 3800lm
Contrast Ratio (FOFO) 20000:1
Display Color 30 Bits (1,07 billion colors)
Native Aspect Ratio Native 16:9 (5 aspect ratio selectable)
Light Source Lamp
Light Source life*
Normal 6000 hr
Economic 10000 hr
SmartEco 10000 hr
LampSave 15000hr
Optical
Throw Ratio 1.49~1.64
Zoom Ratio 1.1X
Keystone Adjustment Auto ID, Vertical +/- 40 degrees
Projection Offset** 110%
Clear Image Size (Diagonal) 70"~150"
Audio
Speaker 10W x 1
Compatibility
Resolution Support VGA(640 x 480) to WUXGA_RB(1920 x 1200)
Horizontal Frequency 15K~102KHz
Vertical Scan Rate 23 ~ 120 Hz
HDTV Compatibility 480i, 480p, 576i, 576p, 720p, 1080i, 1080p
Video Compatibility NTSC, PAL, SECAM, SDTV (480i/576i), EDTV (480p/576p, HDTV (720p, 1080i/p 60Hz)

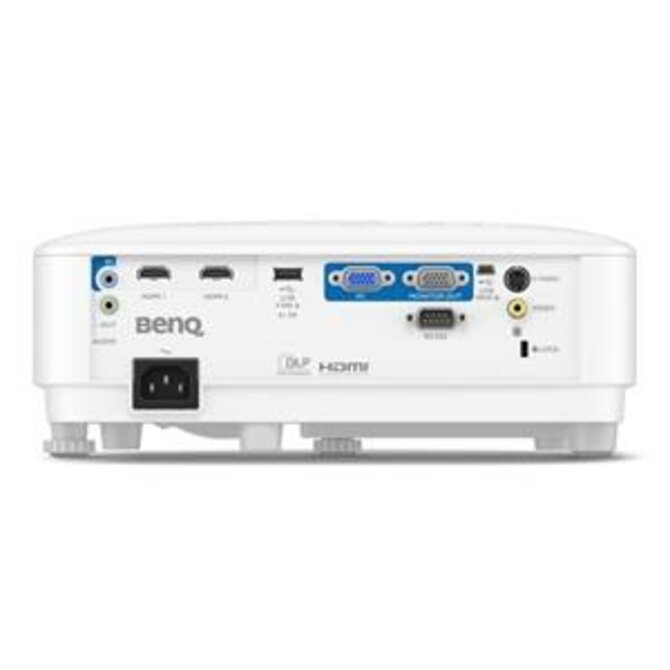

Connectivity
HDMI
HDMI-1 x1
HDMI-2 x1
PC (D-sub 15pin) x1
Monitor out (D-sub 15pin,Female) x1
Audio in (mini jack) x1
Audio out (mini jack) x1
RS232 In (D-sub 9pin, male) x1
USB TypeA-1 x1(1.5A Power)
USB Type mini B x1(For FW upgrade)
IR Receiver (Front+Top) x2
S-Video x1
Composite Video (RCA) x1
Dimension and Weight
Dimensions (W x H x D)(mm) 296 *120*221 mm
Net Weight (Kg/ lbs ) 2.3kg +/- 200g
Power
Power Supply 100 to 240 V AC
Typical Power Consumption Max 280W, Normal 260W, Eco 215W
Standby Power Consumption <0.5W
Acoustic Noise (Typ./Eco.) 32/29 dBA
Operating Temperature 0~40 °C
Accessories (Standard)
Remote Control w/ Battery x 1(5J.JND06.001)
Power Cord (by region) x 1 (1.8m)
Warranty Card (by region) x 1
VGA(D-sub 15pin) Cable x 1 (1.5m)
AAA Battery x2
QSG (4J.JND01.001)
Accessories (Optional)
Spare Lamp Kit Yes(5J.JND05.001)
Universal Ceiling Mount Yes
3D Glasses Yes(5J.J9H25.002)
QCast HDMI dongle Yes(5A.JH328.10X)
OSD
OSD Language Arabic/Bulgarian/ Croatian/ Czech/ Danish/ Dutch/ English/ Finnish/ French/ German/ Greek/ Hindi/ Hungarian/ Italian/ Indonesian/ Japanese/ Korean/ Norwegian/ Polish/ Portuguese/ Romanian/ Russian/ Simplified Chinese/Spanish/ Swedish/ Turkish/ Thai/ Traditional Chinese/ Farsi / Vietnamese/ (30 Languages)
