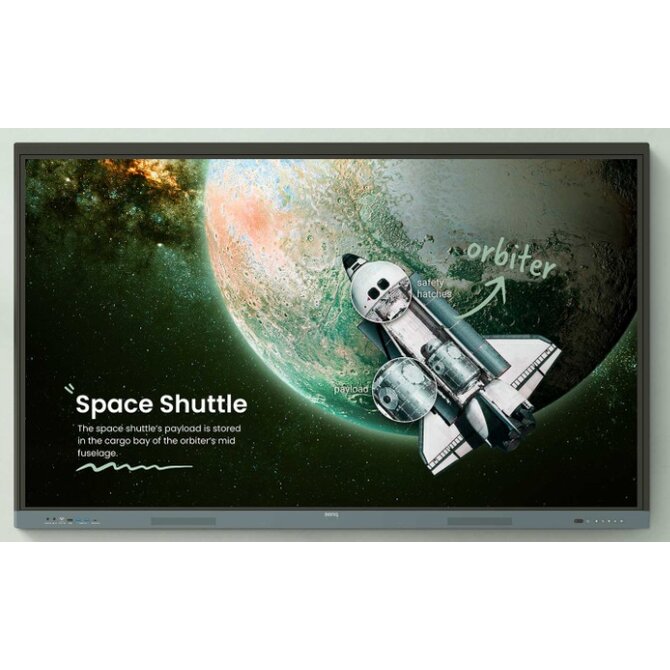

BenQ LCD RE8604 86" IPS Touch/3840 × 2160/1200:1/8ms/450 nits/4xHDMI/DP/SPDIF/repro

Specifikace

Screen size: 86''
Panel type: IPS
Active area: 1895.0 × 1096.0 mm
Aspect ratio: 16:9
Resolution: UHD 3840 × 2160 pixels
Response time: 8 ms
Color depth: 10-bit
Orientation: Landscape
Operation hours: 18 hours / 7 days
Panel brightness (typical): 450 nits
Contrast ratio (typical): 1200:1
Dynamic contrast ratio: 30,000:1
Color gamut: 68% NTSC
Light life (typical): 50,000 hrs

Glass

Germ-resistant coating
Availability dependent on region

Anti-glare coating
Yes

Hardness
9H tempered


Touch screen

Touch technology: Precision IR
Touch points: up to 40
Response time: < 5 ms


System

Memory | Storage
8GB I 64GB

OS
Android 13.0

GPU
G52 MP8

CPU
A73 × 4 + A53 × 4

Connectivity

Video Graphics Array (VGA)
1

HDMI (in | out)
3 × HDMI 2.0 | 1 × HDMI 2.0

Display Port
1 × 1.2 | No

USB-A
2 × 2.0 + 2 × 3.0

USB-C
1 × 2.0 + 1 × 3.0 (PD 65 W)

USB-B (for touch)
2 × 2.0

3.5 mm Line in (1)
PC Audio × 1

3.5 mm Line out
Earphone × 1

Slot-in PC (OPS)
1

Micro SD reader
1

SPDIF (in | out)
0 | 1 (optical)

Ethernet LAN
10 / 100 / 1000 Mbps (Android), 10 / 100 / 1000 Mbps (OPS) × 2

3.5 mm Line in (2)
Mic × 1

RS-232
1

Built-in peripherals

Ambient light sensor: Yes
IR sensor: Yes
Speaker: 2 × 20 W (max)

Power

ENERGY STAR®
Yes

Power
AC 100-240V 50/60Hz

Standby power consumption
<0.5 W

Typical power consumption
106.8 W

Physical

Dimensions (W x H x D)
1961.8 × 1179.7 × 87.7mm (77.2 × 46.4 × 3.5 inch)

Shipping dimensions (W x H x D)
2095 × 185 × 1265 mm (82.5 × 7.3 × 49.8 inch)

Weight (product I shipping)
63.4 kg | 80.2 kg (139.8 lbs | 176.8 lbs)

Mount (screws)
VESA 800 × 600 mm ( 4 × M8 × 25L)

Environment

Operating temperature
0°C ~ 40°C | 32°F ~ 104°F

Storage temperature
-10°C ~ 60°C | 14°F ~ 140°F

Storage humidity
10% ~ 80% RH Non-Condensing

Operating humidity
20% ~ 80% RH non-condensing

Software

Whiteboarding
EZWrite 6.0

Wireless screen sharing
InstaShare 2

Device management
DMS

Account management
AMS

Quick access tool
Floating Tool

Broadcast system
X-Sign Broadcast

Flicker Free
Yes

Low Blue Light
Yes

Accessories

1 × VGA (3 m | 9.8 ft), 1 × HDMI (3 m | 9.8 ft), 1 × USB-B for touch (3 m | 9.8 ft), 1 × USB-C (1.5 m | 4.9 ft)

Wall Mount (with shipment)
1

Stylus
2

Remote control
1
