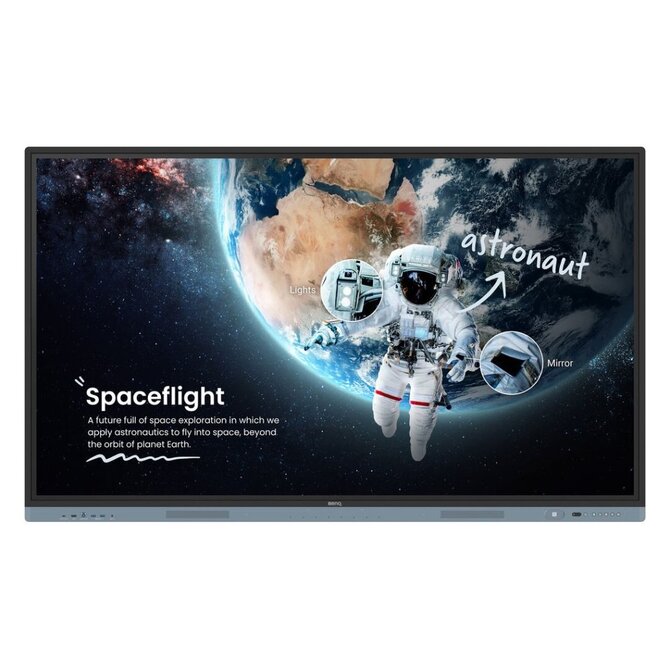

BenQ LCD RM6504 65" IPS Touch/3840 × 2160/1200:1/8 ms/400 nits/3xHDMI/VGA/DP/repro/Android 13.0

Specification

Panel

Screen size: 65"
Panel type: IPS
Orientation: Landscape
Operation hours: 18 hours / 7 days
Active area: 1428.5 × 803.5 mm
Aspect ratio: 16:9
Contrast ratio (typical): 1200:1
Dynamic contrast ratio: 50,000:1
Resolution: UHD 3840 × 2160 pixels
Response time: 8 ms
Pixel pitch: 0.37 × 0.37 mm
Frame rate: 60 Hz
Viewing angle: 178°
Color depth: 10-bit
Light life (typical): 50,000 hrs
Brightness with glass(typical): 400 nits
Brightness without glass (typical): 450 nits


Glass

Glass Thickness: 3.2 mm
Germ-resistant technology: Nano-ionic silver
Anti-glare coating: Yes
Hardness: 9H tempered

Touch screen

Touch technology: Infrared touch
Touch points: up to 40

Platform System

CPU: A73 × 4 + A53 × 4
GPU: G52 MP8
OS: Android 13.0
Memory | Storage: 8GB | 32 GB

Connectivity

VGA (in | out): 1 | 0
DVI (in | out): N/A
HDMI (in | out): 3 × HDMI 2.0 | 1 × HDMI 2.0
DisplayPort (in | out): 1 × 1.2a | No
Ethernet LAN: 10/100/1000Mbps (Android & OPS) x2
USB-A: 2 × 2.0 + 5 × 3.0
USB-B (for touch): 3 × 3.0
USB-C: "1 × 3. 0 (video / audio / touch / PD 65 W)
2 x 3.0 (data only)"

Built-in peripherals

Microphone: 8
Speaker: 2 × 20 W
NFC: Yes

Power

Power: AC 100-240V 50/60Hz
Switch: 1
Voltage: AC 100-240V 50/60Hz

Physical

Housing Material: Metal
Handles: 2
Pen Tray: No

Environment

Flicker free: Yes
Low Blue Light: Yes

Software

Device management: DMS
Quick access tool: Floating Tool
Wireless screen sharing: InstaShare 2
Broadcast system: X-Sign Broadcast
Account management: AMS
User interface (4K): Yes
Whiteboarding: EZWrite 6.0

Accessories

Adaptor: N/A
Stylus: 2
Wall mount: 1
RS232 Cable: N/A
Remote control: 1
Carton: BenQ printing
Cables: 1 × VGA (3 m | 9.8 ft), 1 × HDMI (3 m | 9.8 ft), 1 × USB-B for touch (3 m | 9.8 ft), 1 × USB-C (1.5 m | 4.9 ft)


OSD: (28L) EN/EF/GM/DT/PL/RS/CZ/DN/SW/IT/RM/FN/NG/GK/HG/SP/EP/TC/CNAB/JP/TH/PS/VT/KR/TR/ID/HE


Features

Power cord: BQP: × 7 (3 m | 9.8 ft) (EU/US/AU/TW/JP/UK/IN) ; BQE&BQA x 3 (EU/UK/US) ; BQin × 1 (IN); BQtw × 1; BQC x 1 (CN)
Image setting: Yes
HDMI Daisy Chain: Yes (HDMI out)
RS232 control daisy chain: N/A
ID Setting: N/A
Sharpness enhancement: Yes
Proof of Image Retention: Yes
DDC / CI: N/A
HDMI-HDCP: 1.4 / 2.2
Picture in Picture (PIP): N/A
DP-HDCP: Yes (1.2)
10 Bit Color Processing: Yes
Ambient light sensor: Yes
FW update: USB, OTA
Freeze/ Blank: Yes
Front I/O: Yes
