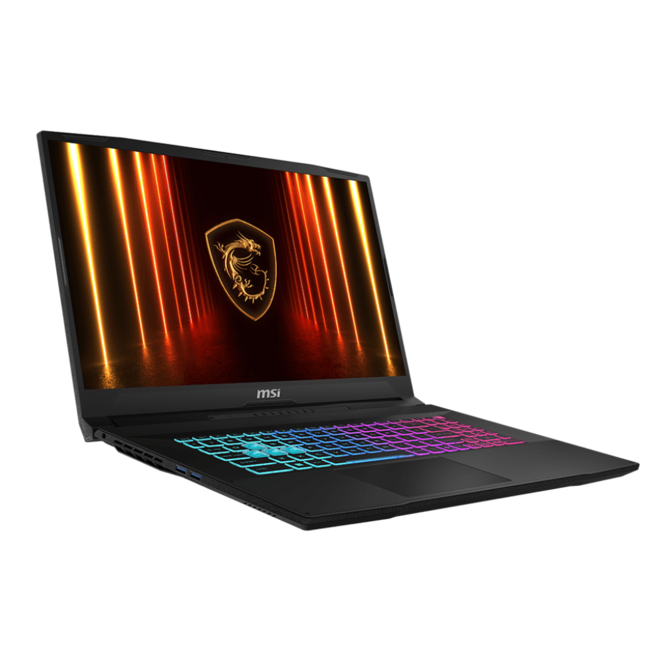

MSI Katana 17 HX B14WGK-282CZ/i7-14650HX/16GB/1TB SSD/RTX 5070, 8GB/17,3"FHD IPS, 144Hz/Win 11 Home/černá

MSI Katana 17 HX B14WGK-282CZ/i7-14650HX/16GB/1TB SSD/RTX 5070, 8GB/17,3"FHD IPS, 144Hz/Win 11 Home/černá

Part No 9S7-17L791-282
SKU Number
Website Name Katana 17 HX B14WGK
Platform INTEL
Series Name Gaming
Segment Name Katana
Segment Name2 Katana17HXB
Segment Name3 Katana 17 HX B14WGK
Model 17L7
MKT Name Katana 17 HX B14WGK
Entity MKT Name
MKT Spec Katana 17 HX B14WGK-282CZ
Chassis Color
Color ID9(BB)/Black-Black-Black-Black
Color_Website Black
Chassis Material
A Side Plastic
B Side Plastic
C Side Plastic
D Side Plastic
Display
Screen Size 17.3
Resolution IPS-Level FHD
LCD Features ANTI-GLARE
Screen Touch Non-touch
Frame Rate 144Hz
Response Time Tr+Tf 25ms
Color Range 45%
Screen Size_Website 17.3"
Pixel_Website FHD(1920x1080)
Frame Rate_Website 144Hz Refresh Rate
Color Range_Website N/A
Display Type_Website IPS-Level
Peak Brightness (HDR Value) N/A
Touch Feature_Website NA
Typical Brightness 250 nits
Typical Brightness Remark *250 nits is not recommended to highlight
Eye Care Feature
CPU
CPU Type 16 CORE
CPU Core Name RAPTOR LAKE HX REFRESH
CPU Number i7-14650HX
CPU Basic Clock 2.2GHz
CPU Cores 16
NPU TOPS N/A
CPU Core Name_Website N/A
CPU Number_Website Intel® Core™ i7 processor 14650HX
CPU Number_Website For GC Intel® Core™ i7 processor 14650HX
CPU Specification_Website 16 cores (8 P-cores + 8 E-cores), 24 threads, 30 MB Intel® Smart Cache, Max Turbo Frequency 5.2 GHz
Intel Evo Certified
Chipset
Chipsets HM770
Chipset SoC_Website Intel® HM770
Discrete Graphics
GPU1 Vendor NVIDIA
GPU1 MKT Name GeForce RTX 5070
GPU1 Number RTX 5070
GPU1 MKT Name_Website NVIDIA® GeForce RTX™ 5070 Laptop GPU powers advanced AI with 798 AI TOPS
GPU1 Boost Clock_Website 2347MHzx Up to Boost Clock 115W Maximum Graphics Power with Dynamic Boost. *May vary by scenario
GPU1 Remark_Website NA
CPU and GPU Combined Power
Combined Power_Website N/A
OverBoost Ultra Remark_Website N/A
Scenario Remark_Website *Full Power CPU & GPU
Cooling
Thermal Cooler Boost 5
Fan 2
Fan Technology NA
Pipe 5
Vapor Chamber NA
Video Memory
GPU1 VRAM Size 8GB
GPU1 VRAM Type GDDR7
Integrated Graphics
GPU1 Graphics_Website Intel® UHD Graphics
Memory
Memory Size 16GB*1
Memory Module DDR5-5600
Memory(Slot) Max Speed Up to DDR5-5600
Memory Form NA
Memory Remark_Website *The actual frequency will vary by memory combination and CPU capability.
Memory Slot and Max Capacity
Memory Max Speed Up to DDR5-5600
Memory Slot 2 Slots
Memory Max Capacity_Website Max 96GB
Storage
SSD Form Factor M.2-2280 M-KEY
SSD Size 1TB*1
SSD Interface NVMe SSD PCIe Gen4
SSD 2 Size N/A
SSD 2 Interface N/A
HDD size N/A
2.5" HDD_Website N/A
SSD Remark NA
Storage Slot
SSD (NVMe PCIe Gen)_Website 1x M.2 SSD slot (NVMe PCIe Gen4)
HDD_Website NA
Max Storage Capacity 4TB
LAN
LAN_Website Gigabit Ethernet
LAN REALTEK/RTL8111H-CG
RJ45 1x
Wi-Fi/ Bluetooth
WLAN/BT_Website Intel® Wi-Fi 6E AX211, Bluetooth v5.3
WLAN Version Wi-Fi 6E+BT
WLAN/BT INTEL/AX211.NGWG.NV
USB Ports
Type-C (USB3.1 Gen2 / DP / Thunderbolt™3) N/A
Type-C (USB3.1 Gen2 / DP / Thunderbolt™3 optional) N/A
Type-C (USB3.2 Gen2 / DP / Thunderbolt™3) N/A
Type-C (USB3.2 Gen1 / DP / Thunderbolt™3) N/A
Type-C (USB3.2 Gen2 / DP / Thunderbolt™3) with PD charging N/A
Type-C (USB3.2 Gen2 / DisplayPort™) N/A
Thunderbolt™ 4 (DisplayPort™/ Power Delivery 3.0) N/A
Thunderbolt™ 4 (DisplayPort™/ Power Delivery 3.1) N/A
Thunderbolt™ 4 (DisplayPort™) N/A
Thunderbolt™ 5 (DisplayPort™/ Power Delivery 3.1) N/A
Thunderbolt™ (DisplayPort™/ Power Delivery 3.0) N/A
Type-C (USB4® / DisplayPort™/ Power Delivery 3.0/ Thunderbolt™ 4 compatible) N/A
Type-C (USB4® / DisplayPort™/ Power Delivery 3.1/ Thunderbolt™ 4 compatible) N/A
Type-C (USB3.2 Gen2 / DisplayPort™/ Power Delivery 3.0) 1x
Type-C (USB3.2 Gen2 / DisplayPort™/ Power Delivery 3.1) N/A
Type-C (USB3.2 Gen1 / DisplayPort™/ Power Delivery 3.0) N/A
Type-C (USB3.1 Gen1 / DisplayPort™) NA
Type-C (USB3.2 Gen1 / DisplayPort™) NA
Type-C USB3.1 Gen2 N/A
Type-C USB3.2 Gen2 N/A
Type-C USB3.2 Gen2 with PD charging N/A
Type-C USB3.1 Gen1 N/A
Type-C USB3.2 Gen1 NA
Type-A USB3.1 Gen1 N/A
Type-A USB3.2 Gen1 NA
Type-A USB3.1 Gen2 N/A
Type-A USB3.2 Gen2 3x
Type-C USB3.2 Gen2x2 N/A
Type-A USB2.0 NA
USB3.2 Gen 2 Type-C(connect to computer) N/A
Card Reader
CardReader N/A
Smart Card Reader N/A
Video Ports
HDMI™ 1x HDMI™ 2.1 (8K @ 60Hz / 4K @ 120Hz)
DisplayPort NA
Mini Display Port N/A
Keyboard
Keyboard Types_Website 4-Zone RGB Gaming Keyboard with Copilot Key
Keyboard Feature N/A
Keyboard Keys 99KEYS
Key Travel 1.7
Keyboard Numeric Yes
Keyboard Color BLACK
Keyboard Language CS Wleft Nokr
Touchpad
Touchpad NA
WebCam
WebCam HD type (30fps@720p)
Audio Port
Audio Jack_Website 1x Mic-in/Headphone-out Combo Jack
Audio
Audio Speaker 2x 2W
Audio Woofer NA
Audio Mic N/A
Audio Solution_Website Hi-Res Audio Ready, Nahimic 3 Audio Enhancer
Adapter
Adaptor 240W
Adaptor Input 90-264V
Adaptor Unit Weight (g) 570
Power Cord Unit Weight (g) 195
Power Cord Type EU
S0/S0ix PD charging range N/A
S4/S5 PD charging range N/A
Adaptor Remark
Battery
Battery Type 4CELLS/4S1P
Battery Cell_Website 4-Cell
Whrs 75 Whrs
Mah 4845 Mah
Battery Unit Weight (g) 214
Support Fast Charging N/A
Operating Systems
OS MULTI-LANGUAGE(WIN 11 HOME ADVANCED OLC OA3)
OS Type W11MA
OS_Website Windows 11 Home (MSI recommends Windows 11 Pro for business.)
Copilot+ PC Certified N/A
Microsoft Office
OS-Office_Website N/A
Dimension (WXDXH)
Dimension 398 x 275.6 x 27.8 mm
Dimension(Inches)_Website 15.67" x 10.85" x 1.09"
Weight (W/ Battery)
Weight 2.7 kg
Weight(lbs)_Website 5.95 lbs
Security
Security Type_Website Firmware Trusted Platform Module(fTPM) 2.0
Certification
Certification Type_Website NA
Sustainability
EPEAT_Website N/A
TCO Certified
Energy Star 9.0 N/A
Sensor
Fingerprint N/A
Ambient Light Sensor_Website N/A
Gyroscope_Website N/A
Accelerometer_Website N/A
Magnetometer_Website N/A
Proximity Sensor N/A
Adaptive Color Sensor N/A
NFC N/A
Warranty
Warranty 24M
Warranty_Website 2 years limited warranty
Additional Warranty N/A
Xbox Game Pass
Xbox Game Pass One month of PC Game Pass
Xbox Game Pass Remark *Spec may vary by model. Please refer to the final spec of the product purchased for Xbox Game Pass pre-installed details.,*Spec and bundle offer may vary by model and by country. Please refer to the final specification of the product purchased for Xbox Game Pass pre-installed details.
Accessory
Extra Bag N/A
Extra Mouse N/A
Remark
Remark 1_Website
Software
Software Discrete Graphics Mode, MSI AI Engine, MSI App Player, MSI Center, MSI Companion, Mystic Light, Nahimic 3, Nvidia App
Model Info
Segment Name2 Katana17HXB
Segment Name Katana
Series Name Gaming
Segment Name3 Katana 17 HX B14WGK
Extra Info
EOL Date
Barcode Info
UCC14
UPC
JAN
EAN 4711377419499
