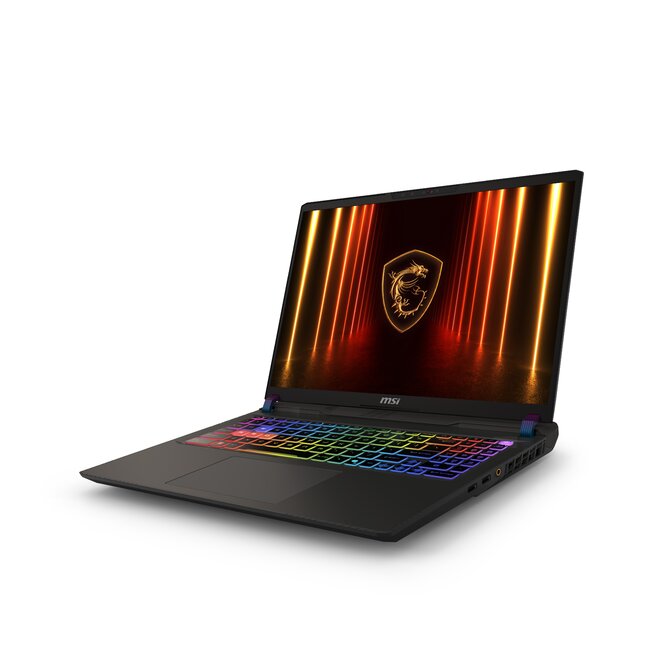

MSI Vector 16 HX AI A2XWHG-695XCZ/Core Ultra 7 255HX/16GB/1TB/RTX 5070 Ti, 12GB/16" FHD+ 144Hz/Bez OS

MSI Vector 16 HX AI A2XWHG-695XCZ/Core Ultra 7 255HX/16GB/1TB/RTX 5070 Ti, 12GB/16" FHD+ 144Hz/Bez OS

Part No 9S7-15M352-695
SKU Number
Website Name Vector 16 HX AI A2XWHG
Platform INTEL
Series Name Gaming
Segment Name Vector
Segment Name2 Vector16HXAIA
Segment Name3 Vector16HXAI A2XWHG
Model 15M3
MKT Name Vector 16 HX AI A2XWHG
Entity MKT Name
MKT Spec Vector 16 HX AI A2XWHG-695XCZ
Chassis Color
Color ID5(GG)/Cosmos_Gray-Black-Cosmos_Gray-Cosmos_Gray
Color_Website Cosmos Gray
Chassis Material
A Side Metal
B Side Plastic
C Side Plastic
D Side Plastic
Display
Screen Size 16
Resolution IPS-Level FHD+
LCD Features ANTI-GLARE
Screen Touch Non-touch
Frame Rate 144Hz
Response Time Tr+Tf 20ms
Color Range 45%
Screen Size_Website 16"
Pixel_Website FHD+(1920x1200)
Frame Rate_Website 144Hz Refresh Rate
Color Range_Website N/A
Display Type_Website IPS-Level
Peak Brightness (HDR Value) N/A
Touch Feature_Website NA
Typical Brightness 350 nits
Typical Brightness Remark N/A
Eye Care Feature
CPU
CPU Type 20 CORE
CPU Core Name ARROW LAKE
CPU Number Core Ultra 7 255HX
CPU Basic Clock 2.4GHz
CPU Cores 20
NPU TOPS 13
CPU Core Name_Website N/A
CPU Number_Website Intel® Core™ Ultra 7 processor 255HX with Intel® AI Boost (NPU)
CPU Number_Website For GC Intel® Core™ Ultra 7 processor 255HX with Intel® AI Boost (NPU)
CPU Specification_Website 20 cores (8 P-cores + 12 E-cores), 20 threads, 30MB L3 cache, Max Turbo Frequency 5.2 GHz
Intel Evo Certified
Chipset
Chipsets HM870
Chipset SoC_Website Intel® HM870
Discrete Graphics
GPU1 Vendor NVIDIA
GPU1 MKT Name GeForce RTX5070 Ti
GPU1 Number RTX 5070 Ti
GPU1 MKT Name_Website NVIDIA® GeForce RTX™ 5070 Ti Laptop GPU powers advanced AI with 992 AI TOPS
GPU1 Boost Clock_Website "2220MHzx Up to Boost Clock 140W Maximum Graphics Power with Dynamic Boost.
*May vary by scenario"
GPU1 Remark_Website N/A
CPU and GPU Combined Power
Combined Power_Website Max. 205W CPU-GPU Power with MSI OverBoost Ultra Technology.
OverBoost Ultra Remark_Website N/A
Scenario Remark_Website NA
Cooling
Thermal Cooler Boost 5
Fan 2
Fan Technology N/A
Pipe 6
Vapor Chamber N/A
Video Memory
GPU1 VRAM Size 12GB
GPU1 VRAM Type GDDR7
Integrated Graphics
GPU1 Graphics_Website Intel® Graphics
Memory
Memory Size 16GB*1
Memory Module DDR5-5600
Memory(Slot) Max Speed Up to DDR5-6400
Memory Form NA
Memory Remark_Website *The actual frequency will vary by memory combination and CPU capability.
Memory Slot and Max Capacity
Memory Max Speed Up to DDR5-6400
Memory Slot 2 Slots
Memory Max Capacity_Website Max 96GB
Storage
SSD Form Factor M.2-2280 M-KEY
SSD Size 1TB*1
SSD Interface NVMe SSD PCIe Gen4
SSD 2 Size N/A
SSD 2 Interface N/A
HDD size N/A
2.5" HDD_Website N/A
SSD Remark ”Please consult service center for upgrading SSD.”
Storage Slot
SSD (NVMe PCIe Gen)_Website 1x M.2 SSD slot (NVMe PCIe Gen4), 1x M.2 SSD slot (NVMe PCIe Gen5) Compatible
HDD_Website NA
Max Storage Capacity 8TB
LAN
LAN_Website 2.5 Gigabit Ethernet
LAN REALTEK/RTL8125BG-CG
RJ45 1x
Wi-Fi/ Bluetooth
WLAN/BT_Website Intel® Wi-Fi 6E AX211, Bluetooth v5.3
WLAN Version Wi-Fi 6E+BT
WLAN/BT INTEL/AX211.NGWG.NV
USB Ports
Type-C (USB3.1 Gen2 / DP / Thunderbolt™3) NA
Type-C (USB3.1 Gen2 / DP / Thunderbolt™3 optional) NA
Type-C (USB3.2 Gen2 / DP / Thunderbolt™3) NA
Type-C (USB3.2 Gen1 / DP / Thunderbolt™3) NA
Type-C (USB3.2 Gen2 / DP / Thunderbolt™3) with PD charging NA
Type-C (USB3.2 Gen2 / DisplayPort™) NA
Thunderbolt™ 4 (DisplayPort™/ Power Delivery 3.0) NA
Thunderbolt™ 4 (DisplayPort™/ Power Delivery 3.1) NA
Thunderbolt™ 4 (DisplayPort™) NA
Thunderbolt™ 5 (DisplayPort™/ Power Delivery 3.1) 2x
Thunderbolt™ (DisplayPort™/ Power Delivery 3.0) NA
Type-C (USB4® / DisplayPort™/ Power Delivery 3.0/ Thunderbolt™ 4 compatible) NA
Type-C (USB4® / DisplayPort™/ Power Delivery 3.1/ Thunderbolt™ 4 compatible) NA
Type-C (USB3.2 Gen2 / DisplayPort™/ Power Delivery 3.0) NA
Type-C (USB3.2 Gen2 / DisplayPort™/ Power Delivery 3.1) NA
Type-C (USB3.2 Gen1 / DisplayPort™/ Power Delivery 3.0) N/A
Type-C (USB3.1 Gen1 / DisplayPort™) NA
Type-C (USB3.2 Gen1 / DisplayPort™) NA
Type-C USB3.1 Gen2 NA
Type-C USB3.2 Gen2 NA
Type-C USB3.2 Gen2 with PD charging NA
Type-C USB3.1 Gen1 NA
Type-C USB3.2 Gen1 NA
Type-A USB3.1 Gen1 NA
Type-A USB3.2 Gen1 NA
Type-A USB3.1 Gen2 NA
Type-A USB3.2 Gen2 2x
Type-C USB3.2 Gen2x2 NA
Type-A USB2.0 NA
USB3.2 Gen 2 Type-C(connect to computer) NA
Card Reader
CardReader 1x SD Express Card Reader
Smart Card Reader N/A
Video Ports
HDMI™ 1x HDMI™ 2.1 (8K @ 60Hz / 4K @ 120Hz)
DisplayPort NA
Mini Display Port NA
Keyboard
Keyboard Types_Website 24-Zone RGB Gaming Keyboard with Copilot Key
Keyboard Feature N/A
Keyboard Keys 99KEYS
Key Travel 1.7
Keyboard Numeric Yes
Keyboard Color BLACK
Keyboard Language CS Wleft Nokr
Touchpad
Touchpad Silky Smooth Touchpad
WebCam
WebCam IR FHD type (30fps@1080p) with HDR & 3D Noise Reduction+ (3DNR+)
Audio Port
Audio Jack_Website 1x Mic-in/Headphone-out Combo Jack
Audio
Audio Speaker 2x 2W
Audio Woofer NA
Audio Mic Array Microphone
Audio Solution_Website Hi-Res Audio Ready, Nahimic 3 Audio Enhancer
Adapter
Adaptor 330W
Adaptor Input 90-264Vin
Adaptor Unit Weight (g) 1050
Power Cord Unit Weight (g) 195
Power Cord Type EU
S0/S0ix PD charging range N/A
S4/S5 PD charging range N/A
Adaptor Remark
Battery
Battery Type 4CELLS/4S1P
Battery Cell_Website 4-Cell
Whrs 90 Whrs
Mah 5845 Mah
Battery Unit Weight (g) 367.8
Support Fast Charging N/A
Operating Systems
OS N/A
OS Type Free DOS
OS_Website Free Dos
Copilot+ PC Certified NA
Microsoft Office
OS-Office_Website N/A
Dimension (WXDXH)
Dimension 357 x 284 x 22.20-28.55 mm
Dimension(Inches)_Website 14.06" x 11.18" x 0.87-1.12"
Weight (W/ Battery)
Weight 2.7 kg
Weight(lbs)_Website 5.95 lbs
Security
Security Type_Website Firmware Trusted Platform Module(fTPM) 2.0, Kensington Lock, Webcam Shutter
Certification
Certification Type_Website Meta Ready
Sustainability
EPEAT_Website N/A
TCO Certified
Energy Star 9.0 N/A
Sensor
Fingerprint N/A
Ambient Light Sensor_Website NA
Gyroscope_Website NA
Accelerometer_Website NA
Magnetometer_Website NA
Proximity Sensor NA
Adaptive Color Sensor N/A
NFC N/A
Warranty
Warranty 24M
Warranty_Website 2 years limited warranty
Additional Warranty N/A
Xbox Game Pass
Xbox Game Pass N/A
Xbox Game Pass Remark N/A
Accessory
Extra Bag N/A
Extra Mouse N/A
Remark
Remark 1_Website
Software
Software AI Noise Cancellation Pro, Battery Master, Crosshair, Discrete Graphics Mode, Intel Application Optimization, Killer Control Center, MSI AI Engine, MSI App Player, MSI Center, Mystic Light, Nahimic 3, Nvidia App
Model Info
Segment Name2 Vector16HXAIA
Segment Name Vector
Series Name Gaming
Segment Name3 Vector16HXAI A2XWHG
Extra Info
EOL Date
Barcode Info
EAN 4711377419468
