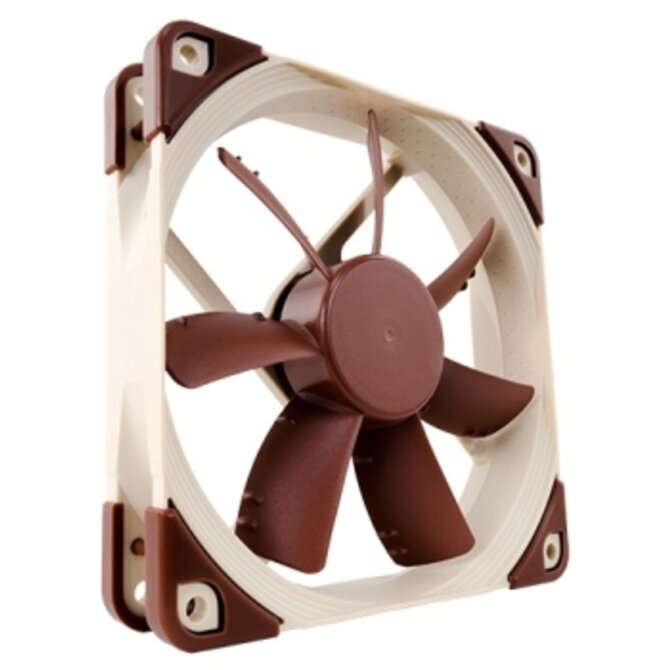

Noctua NF-S12A FLX, 120x120x25 mm

Popis produktu:

Špičkový ventilátor nové generace NF-S12A FLX. Má přepracované lopatky s tzv. Anti-Stall Knobs pro vyšší efektivitu při použití na chladičích a rámečkem AAO (Advanced Acoustic Optimisation) pro ještě tišší běh. Noctua uvádí, že tak bylo dosaženo o 8 procent lepšího poměru průtoku vzduchu a hlučnosti. Nabízí známé Low-Noise adaptéry (čili prodlužovací kabely s odpory) pro nastavení otáček 1200, 900 a 700 RPM.


The NF-S12A marks the third generation of Noctua’s signature S12 series quiet case fans, which have received more than 250 awards and recommendations from the international press. Featuring a further refined blade design with Anti-Stall Knobs that works in tandem with the new AAO (Advanced Acoustic Optimisation) frame, the NF-S12A improves the airflow/noise efficiency of its renowned predecessor by up to 8%. The FLX version provides 1200/900/700rpm speed settings via the supplied Low-Noise Adaptors in order to give you full flexibility in fine-tuning the fan for maximum ventilation performance or near-silent operation. Its superb running smoothness, SSO2 bearing and Noctua’s trusted premium quality make it an elite choice for quiet case cooling.

Size 120x120x25 mm
Connector 3-pin
Bearing SSO2
Blade Geometry S-Series with Anti-Stall Knobs
Frame Technology AAO (Advanced Acoustic Optimisation)
Rotational Speed (+/- 10%) 1200 RPM
Rotational Speed with L.N.A. (+/- 10%) 900 RPM
Rotational Speed with U.L.N.A. (+/- 10%) 700 RPM
Airflow 107,5 m3/h
Airflow with L.N.A. 83,2 m3/h
Airflow with U.L.N.A. 65,8 m3/h
Acoustical Noise 17,8 dB(A)
Acoustical Noise with L.N.A. 10,7 dB(A)
Acoustical Noise with U.L.N.A. 7,4 dB(A)
Static Pressure 1,19 mm H2O
Static Pressure with L.N.A. 0,73 mm H2O
Static Pressure with U.L.N.A. 0,51 mm H2O
Max. Input Power 1,44 W
Max. Input Current 0,12 A
Voltage 12 V
MTBF > 150.000 h

Scope of Delivery
Low-Noise Adaptor (L.N.A.)
Ultra-Low-Noise Adaptor (U.L.N.A.)
3:4-Pin Adaptor
30cm Extension Cable
4 Vibration-Compensators
4 Fan Screws
